The TP528 floor heating thermostat has been developed to control electric heating, water heating, water boiler or gas boiler systems. As a digital thermostat, it can control the temperature exactly and react timely. As a smart thermostat, it has remote function, you can set the room temperature though outside. The TP528 is a WiFi thermostat which has complete functionality, can help you always stay in the comfortable temperature and decorate your room. A high quality and durable WiFi thermostat. A smart floor heating thermostat designed for use in commercial, industrial, civil and domestic properties.
Technical Data
Power Supply：95~240VAC, 50~60Hz
Current Load: 3A(water heating/water boiler/gas boiler), 16A(electricn heating)
Sensor : NTC3950, 10K
Accuracy：±1ºC
Set Temp. Range: 5~35ºC
Dispply Temp. Range: 5~99ºC
Ambient Temp. : 0~45ºC
Ambient Humidity: 5~95%RH(Non Condensing)
Storage Temp: -5°C~55°C
Power Consumption: <1.5W
Timing Error: <1%
Protection Class: IP20
Shell Material: PC + ABS ( Flame retardant)
Communication: WIFI / RS485 / Modbus
Buttons: Capactive Touch Buttons
TP528/ Smart Thermostat Floor Hetaing WiFi Thermostat

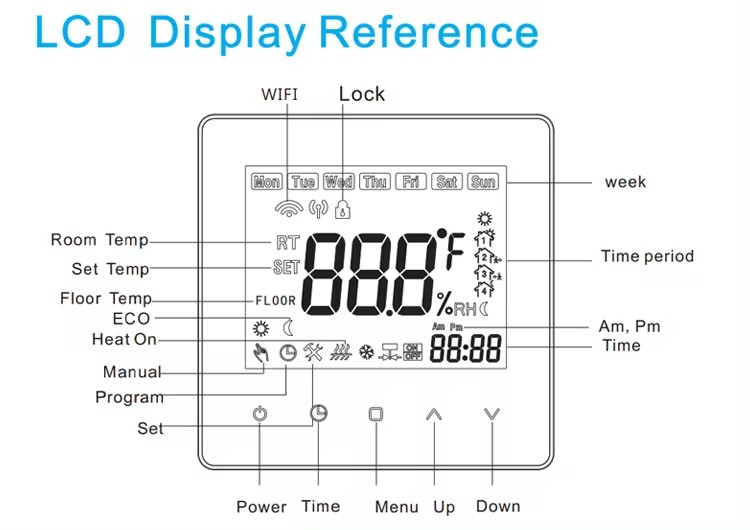

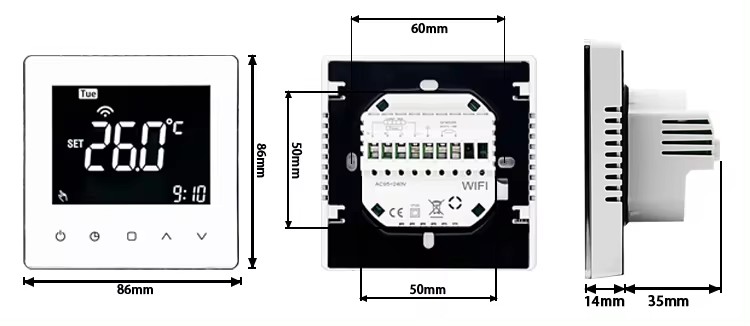

Features on Appearance
TP528/ Smart Thermostat Floor Hetaing WiFi Thermostat
Features on Functionality
1. WiFi/ZIGBEE/MODBUS communication optional.
2. 1°C Accuracy keeps temperature within the level you set.
3. Data memory when power is off.

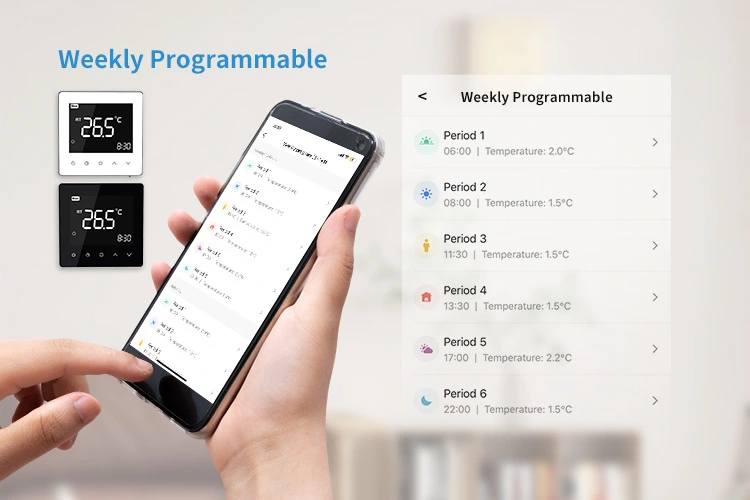

4. 5+1+1 six periods programmable maximize comfort and economy.
TP528/ Smart Thermostat Floor Hetaing WiFi Thermostat
Certificates
