HT006

HT006/ Smart Thermostat WiFi Underfloor Heating Thermostat
Technical Data
Power Supply：95~240VAC, 50~60Hz
Current Load:3A(water heating/water boiler/gas boiler), 16A(electricn heating)
Sensor ：NTC3950, 10K
Accuracy：±1ºC
Set Temp. Range：5~35ºC
Dispply Temp. Range：5~99ºC
Ambient Temp. ：0~45ºC
Ambient Humidity：5~95%RH(Non Condensing)
Storage Temp：-10°C~45°C
Power Consumption：<1.5W
Timing Error：<1%
Protection Class：IP20
Shell Material：PC + ABS ( Fireproof)
Communication: WIFI / RS485 / Modbus
Buttons: Capactive Touch Buttons

 HT006/ Smart Thermostat WiFi Underfloor Heating Thermostat
Features on Appearance

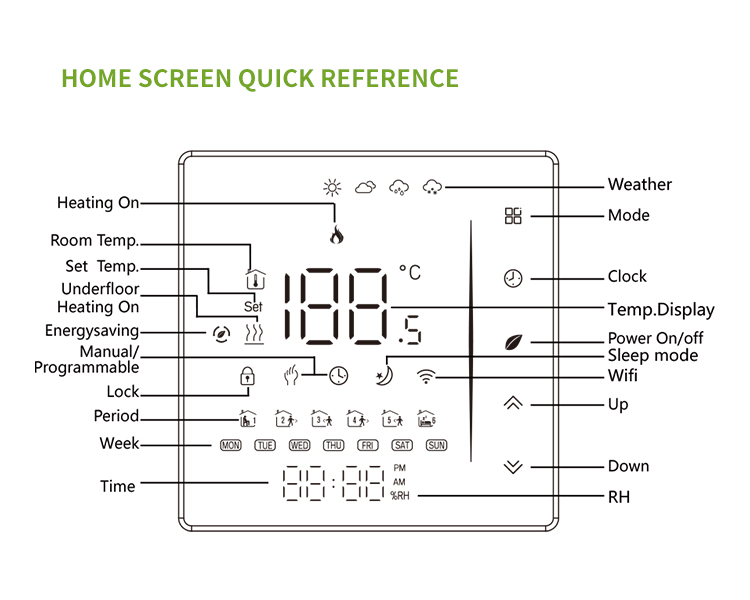

1. LED display, clear and simply interface.

2. Touch operation buttons, smoother interaction.

3. The ultra-thin embedded panel perfectly fits all kinds of walls.

4. The borderless small rounded corner design is simple and atmospheric.

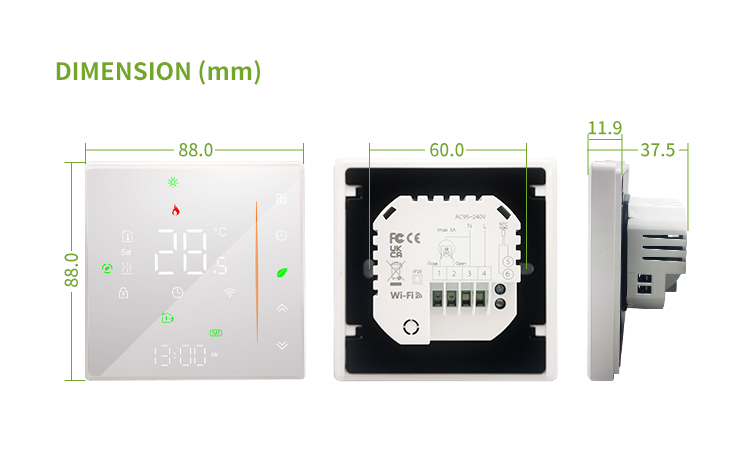

5. Compatible with standard 86mm square cassettes and 60mm European cassettes to meet all installation environments.

HT006/ Smart Thermostat WiFi Underfloor Heating Thermostat
Features on Functionality

1. Rich function options, Modbus, WIFI, keycard, etc., to meet all your needs.

2. Strict temperature control accuracy (±1℃) to provide the warmth you want.

3. Power off protection, save all your settings safely.

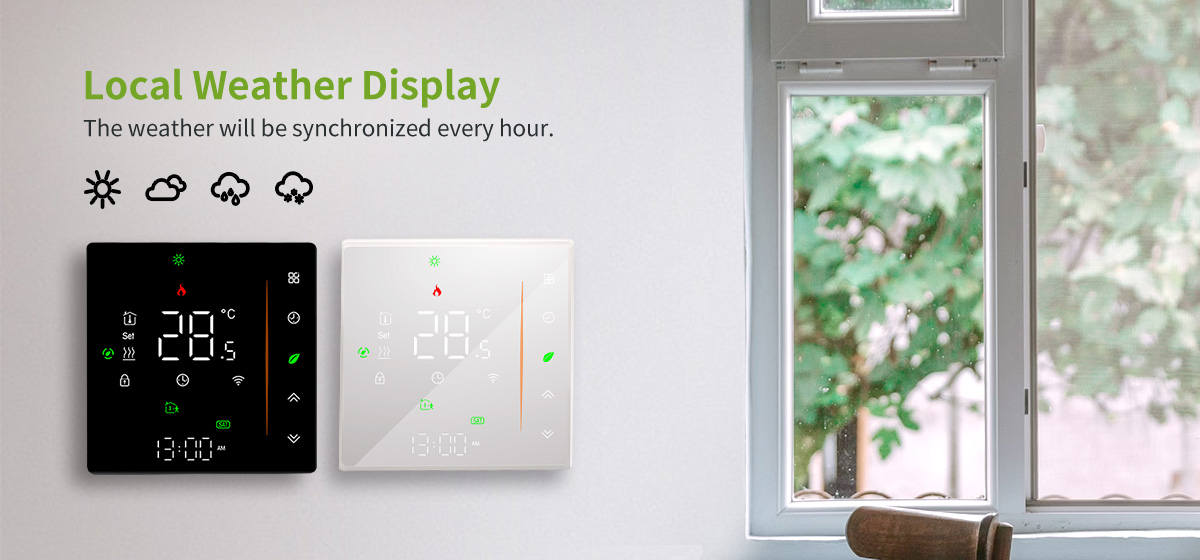

4. Provide weather information and humidity display.

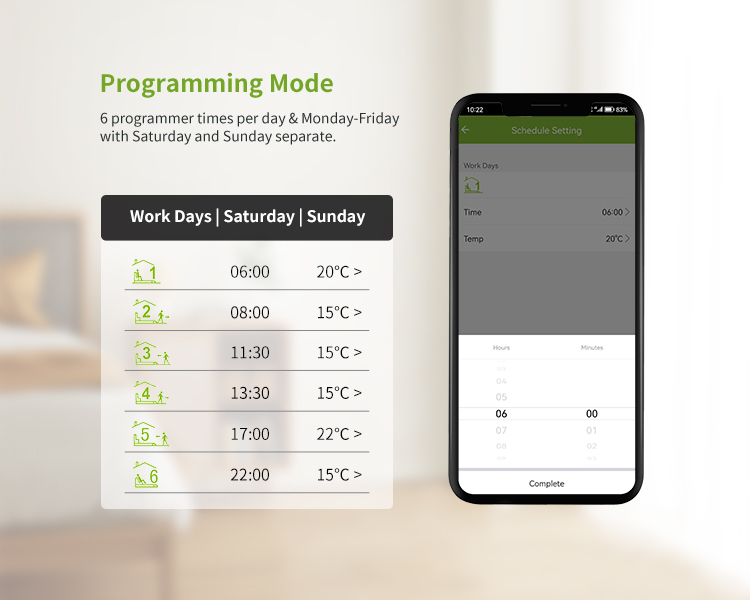

5. Preset adjustment of 5+1+1 mode in a week, programmable setting of 6 time periods a day, green energy saving, Less cost, more intelligent and environmental protection.

6. Support the creation of product local groups/shares to achieve unlimited centralized control of the number of products/ multi-terminal control.

7. Perfect access: Tmall Genie, Amazon echo, Google Home, full experience new voice control method;
