TP201
TP201
The TP201 series thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.
Quantity:
Recommend Products
TP908The TP908 series wifi thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.TP908
CCST6000The CCST6000 series wifi thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.CCST6000
HT006The HT006 series wifi thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.HT006
HT6001The HT6001 series wifi thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.HT6001
TP201/ Underfloor Thermostat Google Thermostat Digital Thermostat
The TP201 heating thermostat has been developed to control electric heating, water heating, water boiler or gas boiler systems. As a digital thermostat, it can control the temperature exactly and react timely. As a smart thermostat, it has remote function, you can set the room temperature though you are outside. The TP201 is a smart google thermostat which has complete functionality, can help you always stay in the comfortable temperature and decorate your room. A smart google thermostat designed for use in commercial, industrial, civil and domestic properties.
TP201/ Underfloor Thermostat Google Thermostat Digital Thermostat
Technical Data
Power Supply：95~240VAC, 50~60Hz
Current Load: 5A(water heating/gas boiler), 16A(electricn heating)
Sensor ：NTC3977, 10K
Accuracy：±1ºC
Ambient Temp. ：0~45ºC
Ambient Humidity：5~95%RH(Non-Condensing)
Storage Temp：-5°C~55°C
Power Consumption：<1.5W
Timing Error：<1%
Technical Data
Power Supply：95~240VAC, 50~60Hz
Current Load: 5A(water heating/gas boiler), 16A(electricn heating)
Sensor ：NTC3977, 10K
Accuracy：±1ºC
Ambient Temp. ：0~45ºC
Ambient Humidity：5~95%RH(Non-Condensing)
Storage Temp：-5°C~55°C
Power Consumption：<1.5W
Timing Error：<1%

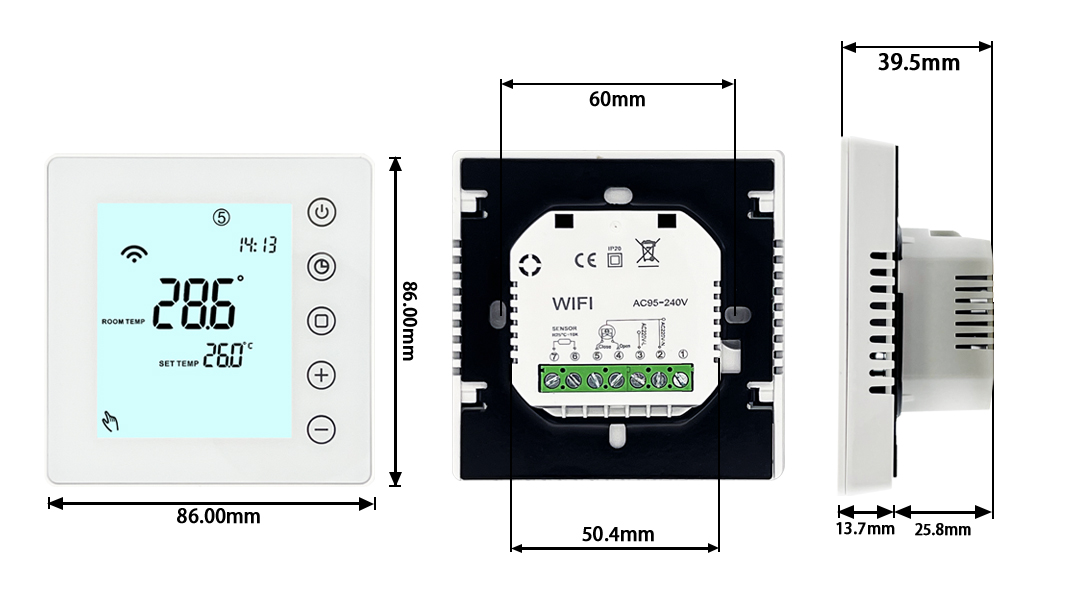

Dimension: 86x86x13.7mm
Shell Material：PC + ABS ( flame retardant)
Shell Material：PC + ABS ( flame retardant)
Installation Hole distance: 60mm
TP201/ Google Thermostat Hot Water Heater Thermostat

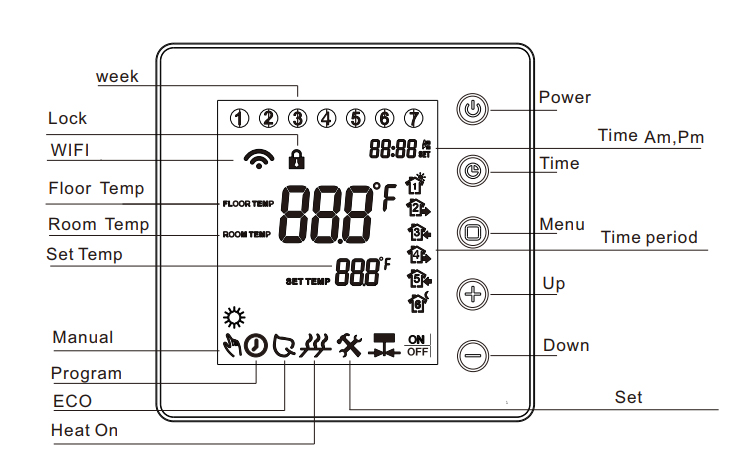

Features on Appearance
Features on Appearance
1. Very Simple home screen.
2. Acrylic face plate.
3. Large, backlight display comfort your eyes.
4. Modern design decorate your room.
5. Touch control panel.
6. Suitable for installation 86box or European 60mm round box.
TP201/ Google Thermostat Hot Water Heater Thermostat
Features on Functionality
Features on Functionality

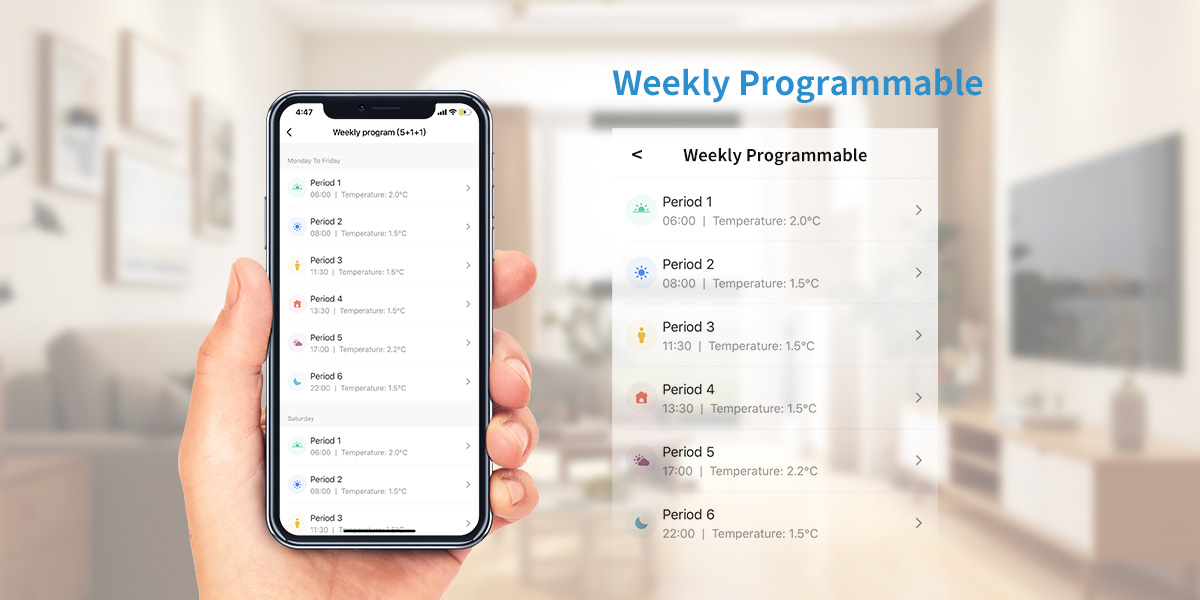

1. 5+1+1 six periods per day programming.
2. Pre-set temperatures maintained within +/- 1°C.
3. Internal and external sensors allow control of both room and floor temperatures.
4. WIFI/ZIGBEE/MODBUS communication optional.
5. Simple, one-touch temperature control over-ride .
4. WIFI/ZIGBEE/MODBUS communication optional.
5. Simple, one-touch temperature control over-ride .
TP201/ Underfloor Thermostat Google Thermostat Digital Thermostat
Certificates
