The CCST6001 smart thermostat has been developed to control electric heating, water heating, water boiler or gas boiler systems. As a digital thermostat, it can control the temperature exactly and react timely. As a smart thermostat, it has remote function, you can set the room temperature though you are outside. The CCST6001 is a boiler thermostat which has complete functionality, can help you always stay in the comfortable temperature and decorate your room. A high quality and durable boiler thermostat. A smart boiler thermostat designed for use in commercial, industrial, civil and domestic properties.
Technical Data
Power Supply：95~240VAC, 50~60Hz or 24V DC/AC, 50~60Hz

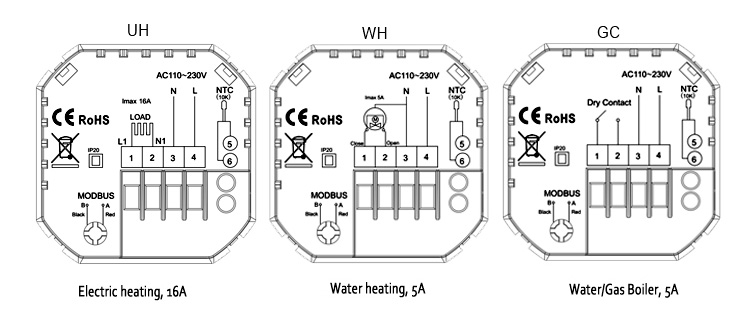

Current Load: 3A(water heating/water boiler/gas boiler), 16A(electricn heating)
Sensor ：NTC3950, 10K
Accuracy：±1ºC
Set Temp. Range：5~35ºC
Dispply Temp. Range：5~99ºC
Ambient Temp. ：0~45ºC
Ambient Humidity：5~95%RH(Non Condensing)
Storage Temp：-10°C~45°C
Power Consumption：<1.5W
Timing Error：<1%
Protection Class：IP20
Shell Material：PC + ABS ( Fireproof)
Communication: WIFI / RS485 / Modbus
Buttons: Capactive Touch Buttons
CCST6001/ Smart Thermostat WiFi Heated floor boiler Thermostat

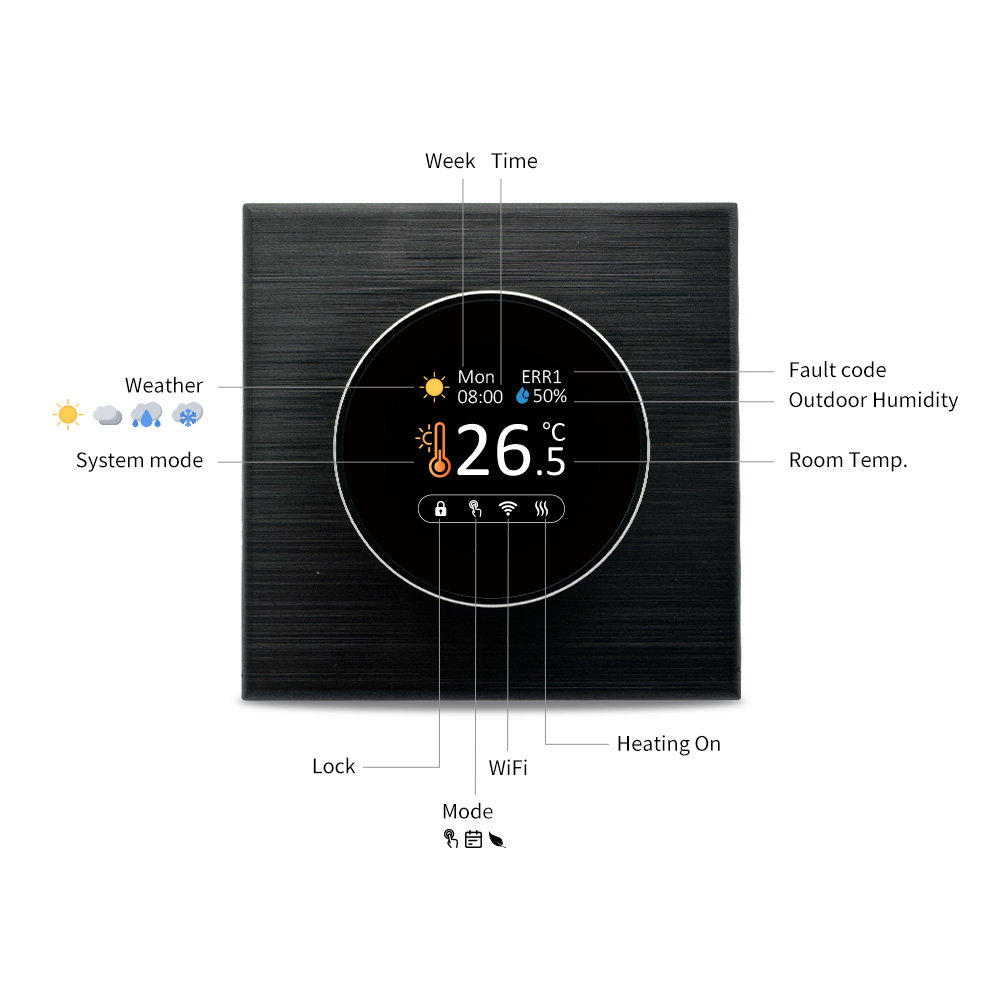

Features on Appearance
1. 1.32 inch circular and 240*240 TFT shows your artistic taste.
2. Superfine aluminum side knob lets your fingers feel delicate.
3. High quality boiler thermostat. Above 6H tempered glass keeps your screen away from scratches.
4. Agile push button gives you an excellent experience.
5. Three colors ambient light increase color to your life.
6. Variety brushed back panel options are suitable for different home styles.
CCST6001/ Smart Thermostat WiFi Heated floor boiler Thermostat
Features on Functionality
1. Powerful functions are available such as Modbus/WlFl etc,.
2. 0.5°C Accuracy keeps temperature within the level you set.
3. Data memory when power is off.
4. 5+1+1 six periods programmable maximize comfort and economy.
5. Integrated with Amazon Echo, Google Home, Tmall Genie, IFTTT.
CCST6001/ Smart Thermostat WiFi Heated floor boiler Thermostat Heating Thermostat
