HT-009
HT-009
The HT-009 series wifi thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.
Quantity:
Recommend Products
TP908The TP908 series wifi thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.TP908
TP201The TP201 series thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.TP201
CCST6000The CCST6000 series wifi thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.CCST6000
HT006The HT006 series wifi thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.HT006
HT-009/ Smart Thermostat Underfloor Heating Wireless Tuya Thermostat
The HT-009 heating thermostat has been developed to control electric heating, water heating, water boiler or gas boiler systems. As a WiFi thermostat(Wireless thermostat), it has remote function, you can set the room temperature though you are outside. As a programmable thermostat, you can set your own temperature schedule. The HT-009 is a tuya thermostat which has complete functionality, can help you always stay in the comfortable temperature and decorate your room. A high quality tuya thermostat. A tuya thermostat designed for use in commercial, industrial, civil and domestic properties.
HT-009/ Smart Thermostat Underfloor Heating Wireless Tuya Thermostat
Technical Data
Power Supply：95 ~240 VAC, 50~60Hz or 24V DC/AC,50~60Hz
Current Load:3A(water heating/water boiler/gas boiler), 16A(electricn heating)
Sensor ：NTC3950, 10K
Accuracy：±1ºC
Set Temp. Range：5~35ºC
Dispply Temp. Range：5~99ºC
Ambient Temp. ：0~45ºC
Ambient Humidity：5~95%RH(Non Condensing)
Storage Temp：-5°C~45°C
Power Consumption：<1.5W
Timing Error：<1%
Protection Class：IP20
Shell Material：PC + ABS ( Fireproof)
Communication: WIFI / RS485 / Modbus
Buttons: Capactive Touch Buttons
Technical Data
Power Supply：95 ~240 VAC, 50~60Hz or 24V DC/AC,50~60Hz
Current Load:3A(water heating/water boiler/gas boiler), 16A(electricn heating)
Sensor ：NTC3950, 10K
Accuracy：±1ºC
Set Temp. Range：5~35ºC
Dispply Temp. Range：5~99ºC
Ambient Temp. ：0~45ºC
Ambient Humidity：5~95%RH(Non Condensing)
Storage Temp：-5°C~45°C
Power Consumption：<1.5W
Timing Error：<1%
Protection Class：IP20
Shell Material：PC + ABS ( Fireproof)
Communication: WIFI / RS485 / Modbus
Buttons: Capactive Touch Buttons

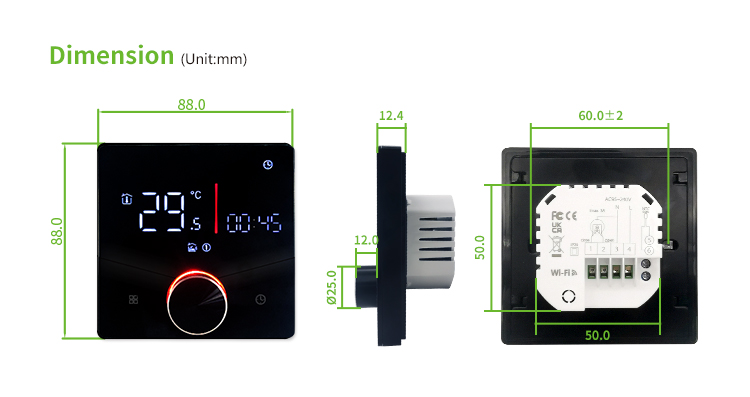

Installation Box: 86 * 86mm Square or European 60mm Round Box
HT-009/ Smart Thermostat Underfloor Heating Wireless Tuya Thermostat
Features on Appearance

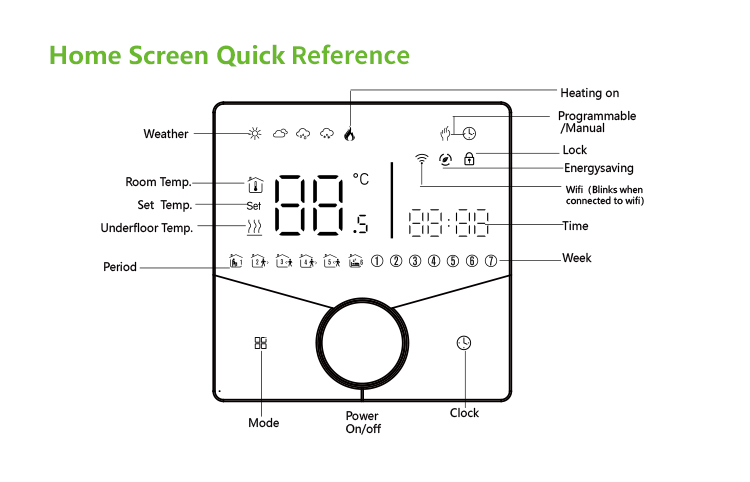

1. LED display, more friendly interface;. LED matrix light, simple display, energy saving, protect your eyes.
2. Touch buttons to make simple operation.
3. The ultra-thin embedded panel perfectly fits all kinds of walls; The visiable thickenss above the wall is only 12.4mm.
4. Frameless acrylic panel design, simple and elegant;
5. Classic black/white color scheme, seamlessly integrated.
6. Compatible with standard 86mm square cassettes and 60mm European cassettes.
7. Interlock to connect gives you easy installation.
HT-009/ Smart Thermostat Underfloor Heating Wireless Tuya Thermostat
Features on Functionality
Features on Functionality
1. Rich function options, Modbus, WIFI, keycard, etc,. It's a tuya thermostat.
2. Strict temperature control accuracy (± 1°C) to provide the warmth you want.
3. Power off protection, save all your settings safely.

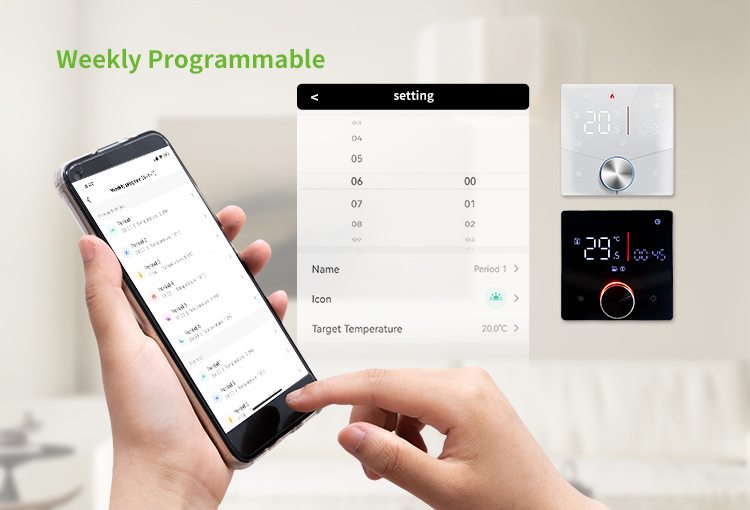

4. Preset adjustment of 5+1+1 mode in a week, programmable setting of 6 time periods a day, green energy saving, Less cost, more intelligent and environmental protection.
5. Support the creation of product local groups/shares to achieve unlimited centralized control of the number of products/ multi-terminal control.
6. Perfect access: Tmall Genie, Amazon echo, Google Home, full experience new voice control method.
HT-009/ Smart Thermostat Underfloor Heating Wireless Tuya Thermostat
Certificates
