CCST1001HT
CCST1001HT
Supply Ability:
5000 /

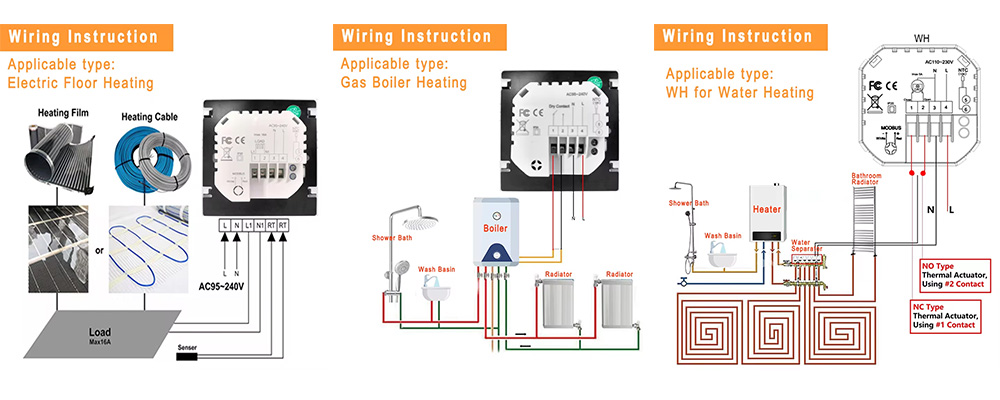

The CCST1001 wifi thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.
Quantity:
Recommend Products
TP908The TP908 series wifi thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.TP908
TP201The TP201 series thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.TP201
CCST6000The CCST6000 series wifi thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.CCST6000
HT006The HT006 series wifi thermostat has been developed to control electric underfloor heating, water underfloor heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.HT006
CCST1001/ Floor Smart Heating Thermostat Digital WiFi Thermostat
The CCST1001 smart heating thermostat has been developed to control electric underfloor, water heating or water/ gas boiler systems. As a digital thermostat, it can control the temperature exactly and react timely. As a smart thermostat, it have remote function, you can set the room temperature though you are outside. The CCST1001 is a smart heating thermostat which has complete functionality, can help you always stay in the comfortable temperature and decorate your room. It's good a wireless boiler thermostat. A digital thermostat designed for use in commercial, industrial, civil and domestic properties.
CCST1001/ Floor Smart Heating Thermostat Digital WiFi Thermostat
Technical Data
Technical Data
Power Supply：95~240VAC

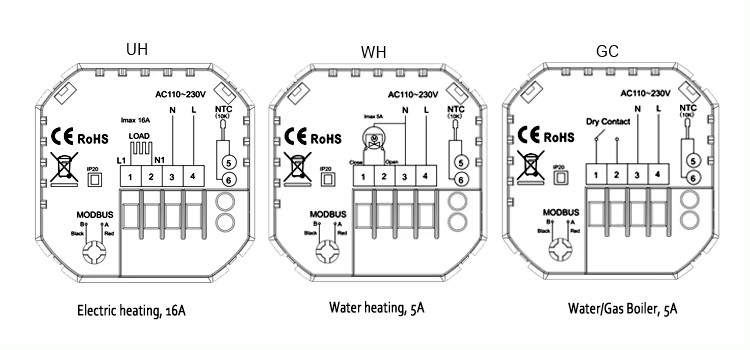

Current Load:3A(water heating/water boiler/gas boiler), 16A(electricn heating)
Sensor ：NTC3950
Accuracy：±1ºC
Set Temp. Range：5~35ºC
Dispply Temp. Range：5~99ºC
Ambient Temp. ：0~45ºC
Ambient Humidity：5~95%RH(Non Condensing)
Storage Temp：-25°C~50°C
Power Consumption：<1.5W
Timing Error：<1%
Protection Class：IP20
Shell Material：Anti-flammable PC +ABS
Communication: WIFI / RS485 / Modbus
Buttons: Capactive Touch Buttons
CCST1001/ Floor Smart Heating Thermostat Digital WiFi Thermostat
Features on Appearance
Features on Appearance

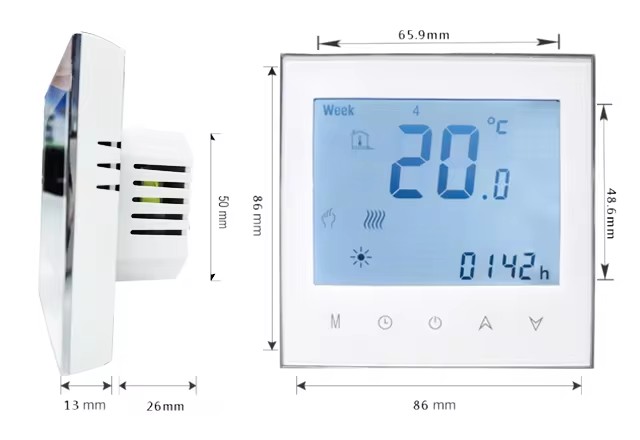

1.86mm hidden box and European 60mm round box is suitable.
2.White, black housing creates your colorful life.
3.White, balck backlight protect your eyes.
4.Touch buttons to make simple operation.
5.Amazing Silver Frame opens your modern life.
CCST1001/ Floor Smart Heating Thermostat Digital WiFi Thermostat
Features on Functionality
Features on Functionality
1. Support WIFI/RS485 wireless communication mode.
2. Support multi-voice platform control, Amazon Alexa and Google home.
3. Child lock button lock function
4. Power-down memory function.

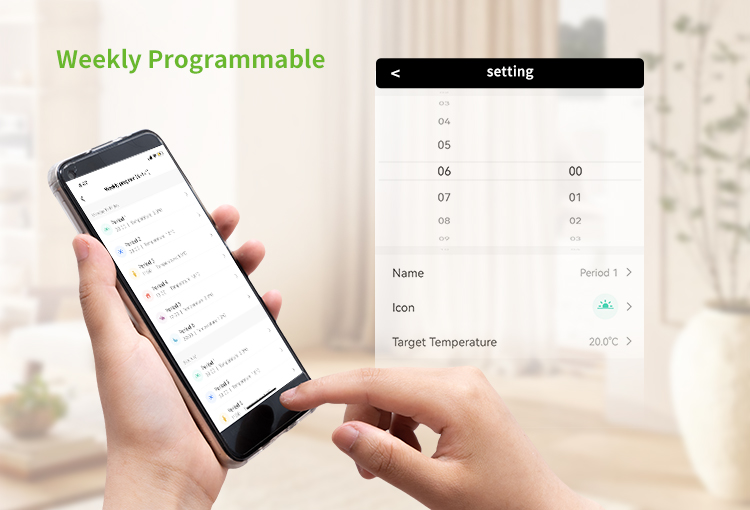

5. 5+2 programmable Schedule.
CCST1001/ Floor Smart Heating Thermostat Digital WiFi Thermostat
