The CCST2001 smart thermostat has been developed to control electric heating, water heating, water boiler or gas boiler systems. As a digital thermostat, it can control the temperature exactly and react timely. As a smart WiFi thermostat, it have remote function, you can set the room temperature though you are outside. The CCST2001 is a smart thermostat which has complete functionality, can help you always stay in the comfortable temperature and decorate your room. It's a high quality thermostat for boiler. A smart thermostat designed for use in commercial, industrial, civil and domestic properties.
CCST2001/ Smart Thermostat WiFi Floor Heating Thermostat
Technical Data
Power Supply：95~240VAC, 50~60Hz
Current Load:3A(water heating/water boiler/gas boiler), 16A(electricn heating)
Sensor ：NTC3950
Accuracy：±1ºC
Set Temp. Range：5~35ºC
Dispply Temp. Range：5~99ºC
Ambient Temp. ：0~45ºC
Ambient Humidity：5~95%RH(Non Condensing)
Storage Temp：-5°C~45°C
Power Consumption：<1.5W
Timing Error：<1%
Protection Class：IP20
Shell Material：PC + ABS ( Fireproof)
Communication: WIFI / RS485 / Modbus
Buttons:Tact Switch Buttons

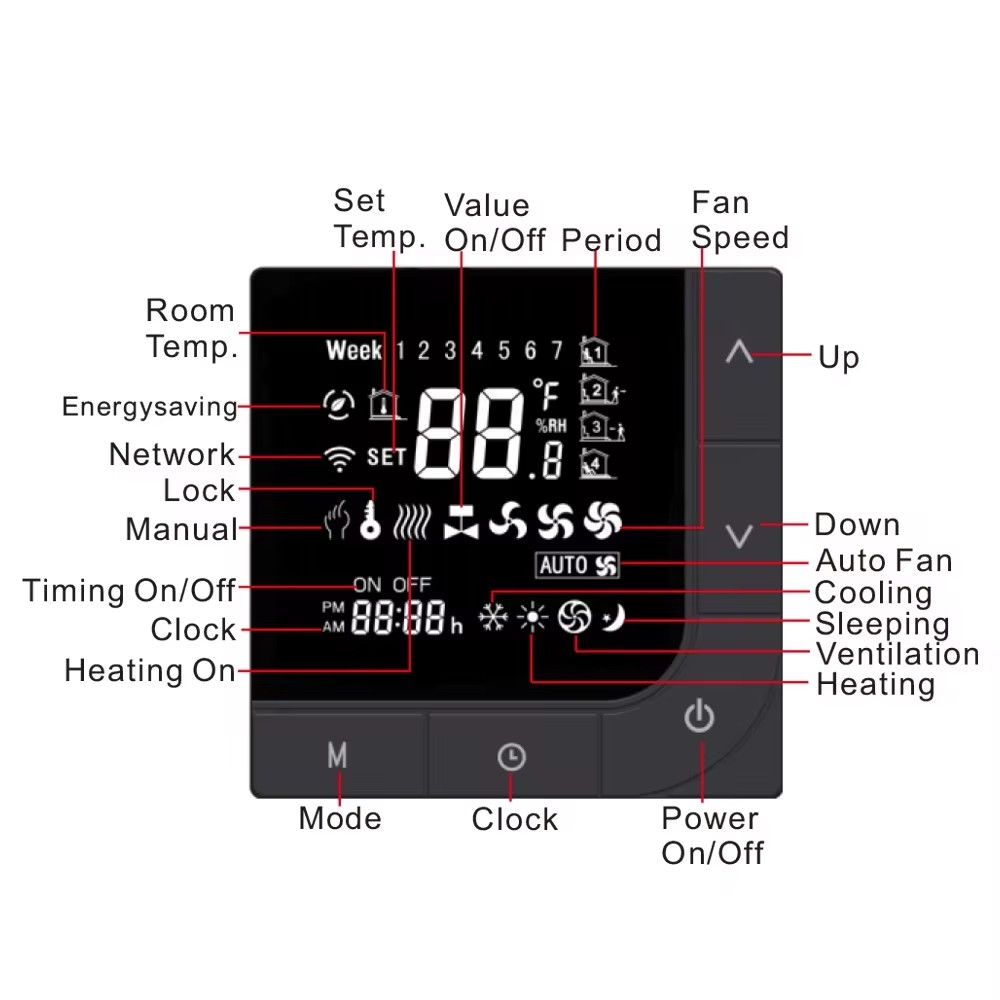

Features on Appearance

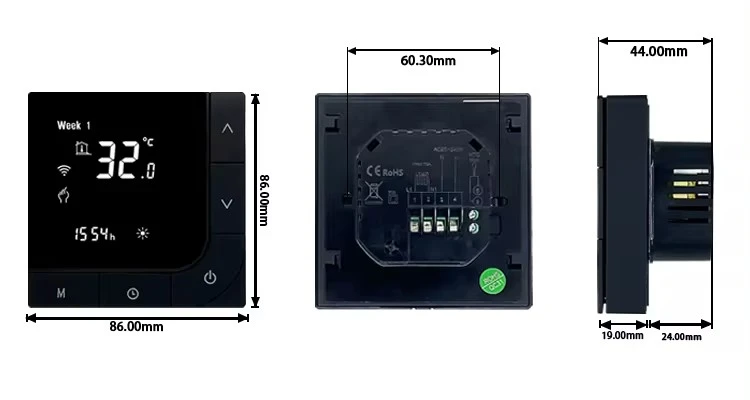

1. 86mm hidden box and European 60mm round box is suitable.
2. White, black housing creates your colorful life.
3. White, balck backlight protect your eyes.
4. Tact Switch Buttons to make simple operation.
5. Amazing Frame opens your modern life.
Features on Functionality
1. Powerful functions are available such as Modbus/WlFl etc,.
2. 0.5°C Accuracy keeps temperature within the level you set.
3. Data memory when power is off.

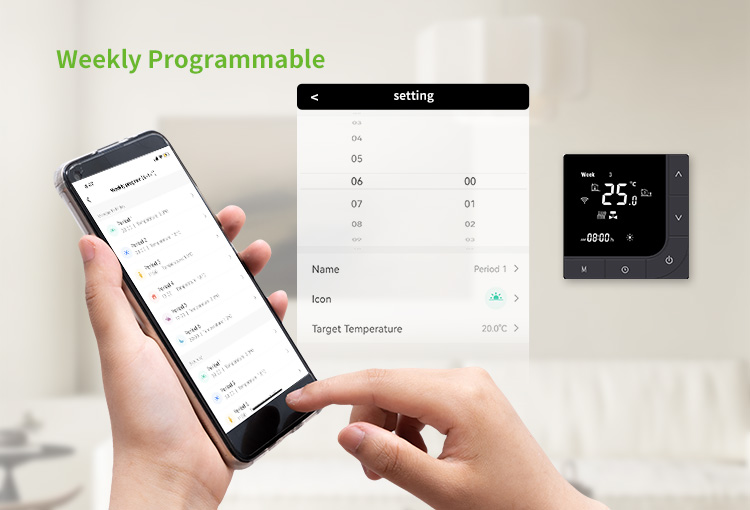

4. 5+2 six periods programmable maximize comfort and economy.
5. Integrated with Amazon Echo, Google Home, Tmall Genie, IFTTT.
6. Support Device Sharing.
7. All setting languages synchronize your time zone, address and language
8. No limit to add room.
