CCST6001
CCST7001CCST7001 series modern round touch screen room Thermostats are designed to in/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp.as reaching the aim of comfort and saving energy.CCST7001
AC-6001The AC-6001 is a durable, safe and reliable smart Air Conditioning thermostat for Fan Coil Unit HVAC System. It is a Air Conditioning thermostat designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature, as reaching the aim of comfort and saving energy.AC-6001
AC-006The AC-006 is a durable, safe and reliable smart AC thermostat for Fan Coil Unit HVAC System. It is a smart AC thermostat designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature, as reaching the aim of comfort and saving energy.AC-006
CCST1002FCUCCST1002 series modern touch screen room Thermostats are designed to in/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp.as reaching the aim of comfort and saving energy.Fan Coil Air Conditioning Programmable Smart Tuya WiFi Wireless Room FCU ThermostatCCST1002FCU
Technical Data
Power Supply：110 ~ 230 VAC, 50 ~ 60HZ

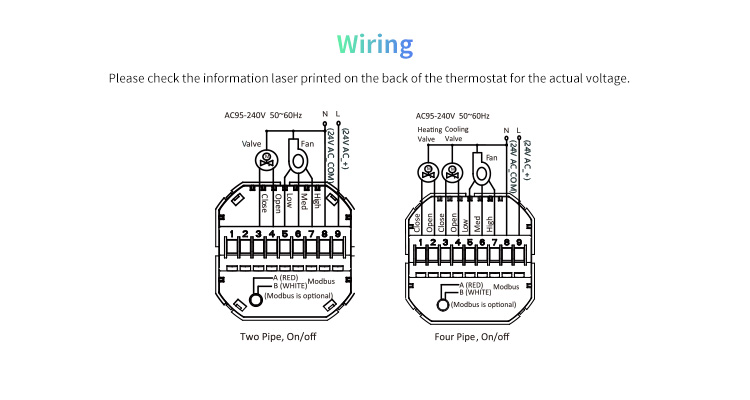

Application：Two pipe on/off, Four pipe on/off, Two pipe modulating
Sensor ：NTC,10K
Accuracy：±1ºC
Set Temp. Range：5-35ºC
Dispply Temp. Range：5~99ºC
Ambient Temp. ：0~45ºC
Ambient Humidity：5~95%RH(Non Condensing)
Storage Temp：0~45ºC
Power Consumption：<1.5W
Timing Error：<1%
Protection Class：IP20
Buttons：Rotate Button
Shell Material：PC +ABS ( Fireproof)

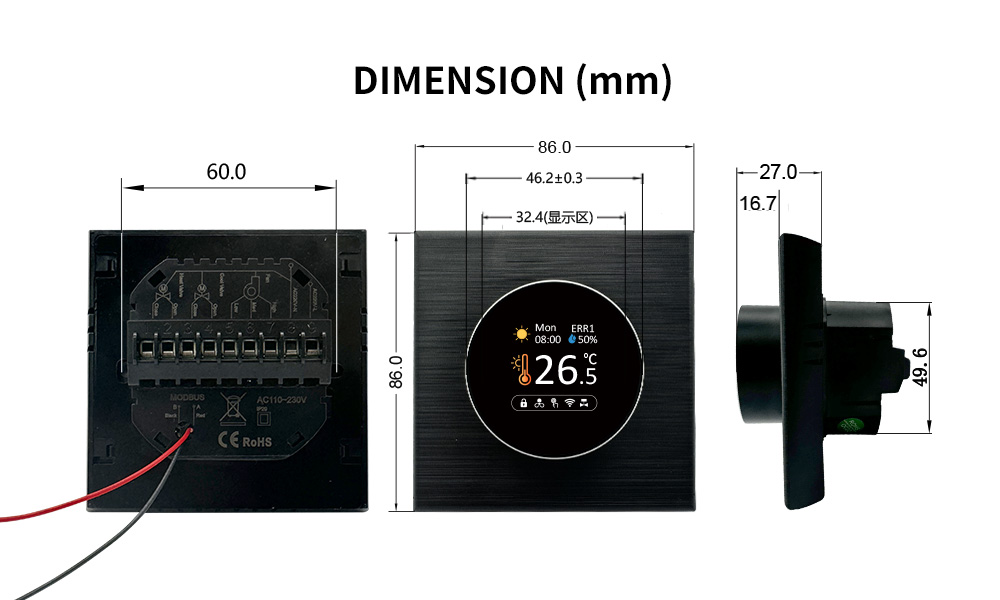

Installation Box：86 * 86mm Square or European 60mm Round Box
Application：Villa, Hotel, Apartment, Office Building, Hospital, School, Workshop, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining
CCST6001/ Fan Coil Smart AC Thermostat WiFi Digital Room Thermostat

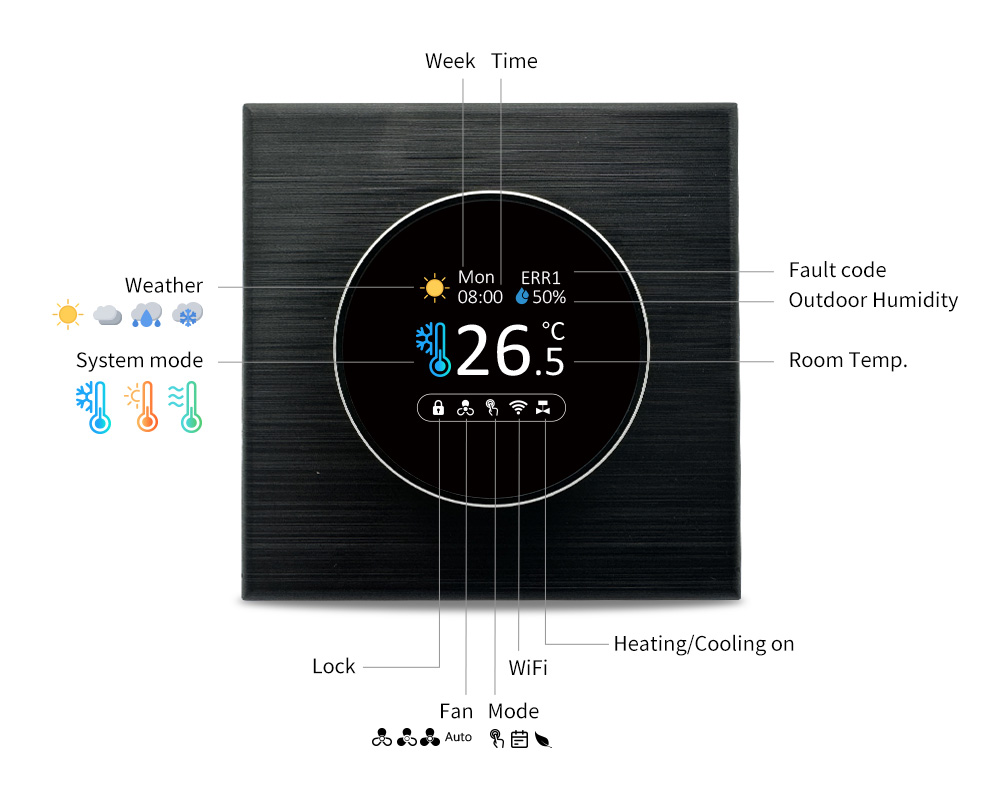

Features on Appearance
1. 86mm hidden box and European 60mm round box is suitable.
2. As a new type room thermostat, the LCD screen is smiple and good looking.
3. black backlight protect your eyes and show digital clearly.
4. Rotata buttons to make simple operation.
5. Silver/Gold/Black Frame opens your modern life.
CCST6001/ Fan Coil Smart AC Thermostat Smart Room Thermostat
Features on Functionality
1.Switch to choose working modes.
2.Fault prompt function.
3.Memories all set parameters and automatically resumes operation when powered on.
4.Display brightness adjustment function.
5.Daily/weekly programming function.
6.Time calibration function.
7.Humidity display function. (Display after successful networking)
8.Weather display function. (Display after successful networking)
9.Temperature compensation and temperature hysteresis function.
CCST6001/ Fan Coil Smart AC Thermostat Digital Room Thermostat Fan Coil Thermostat

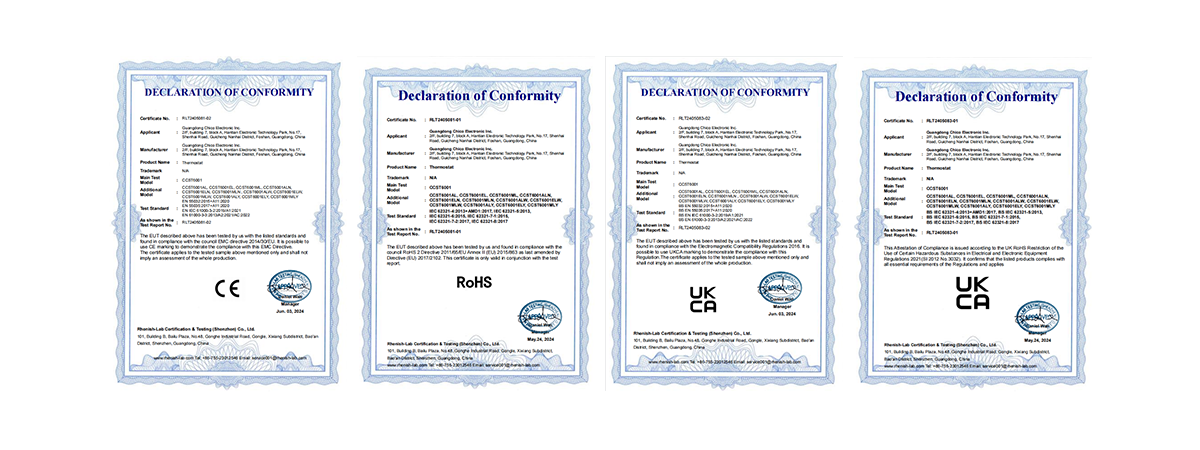

Certificates
Send Message
