The CCST1002 AC thermostat (Air Conditioning Thermostat) is a durable, safe and reliable digital thermostat for Fan Coil Unit HVAC System. It is a digital thermostat designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature, as reaching the aim of comfort and saving energy. As a digital thermostat, it can control the temperature exactly and react timely. As a room thermostat, it have remote function, you can set the room temperature though you are outside. The CCST1002 is a house thermostat have complete functionality and TFT color touch screen, which can help you always stay in the comfortable temperature and decorate your room.
Technical Data
Power Supply：95~240 VAC, 50~60HZ

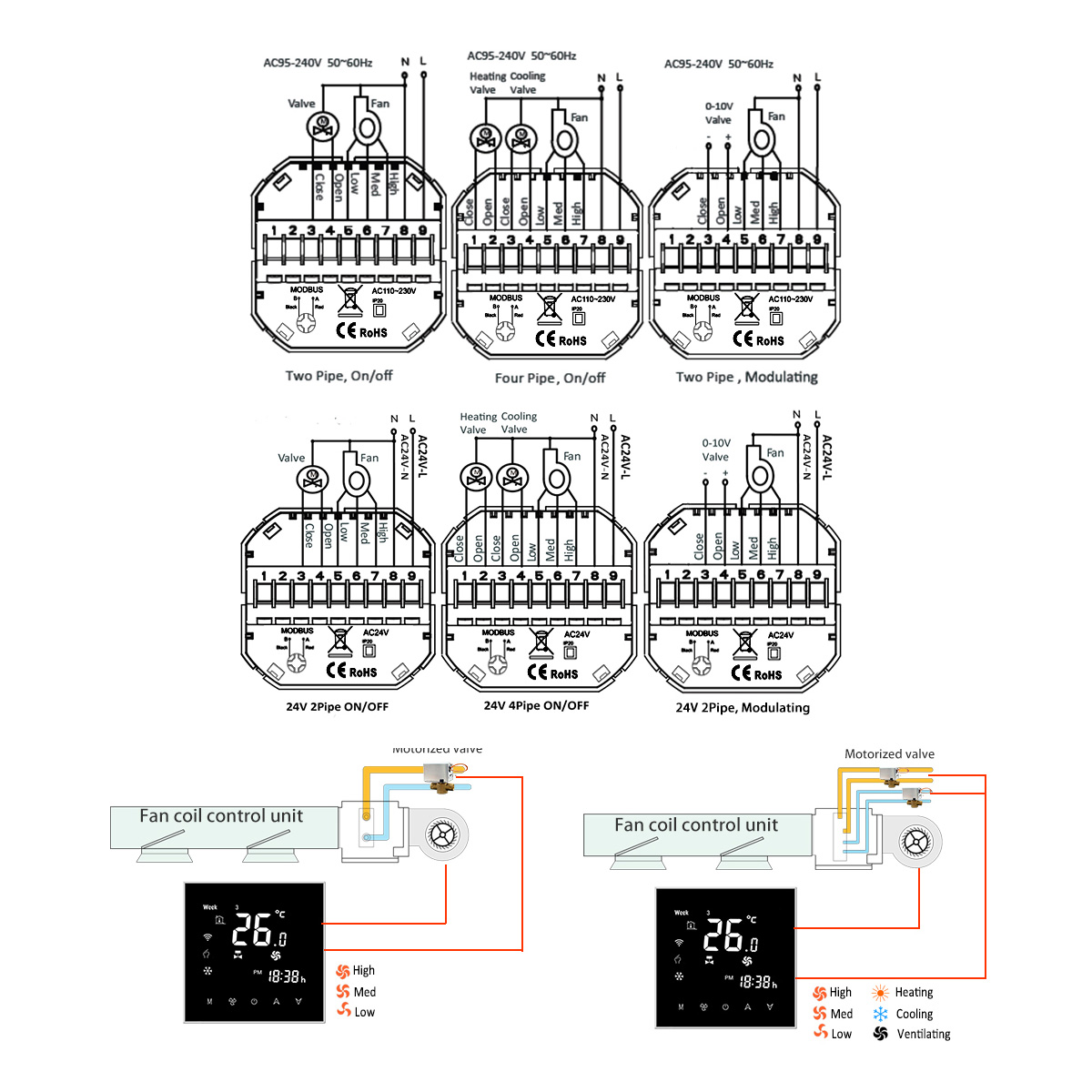

Application：Two pipe on/off, Four pipe on/off, Two pipe modulating
Sensor ：NTC3950,10K
Accuracy：±0.5ºC
Set Temp. Range：5~35ºC
Dispply Temp. Range：5~99ºC
Ambient Temp. ：0~45ºC
Ambient Humidity：5~95%RH(Non Condensing)
Storage Temp：-5~45ºC
Power Consumption：<1.5W
Timing Error：<1%
Protection Class：IP20
Buttons：Capactive Touch Buttons
Shell Material：PC +ABS ( Fireproof)

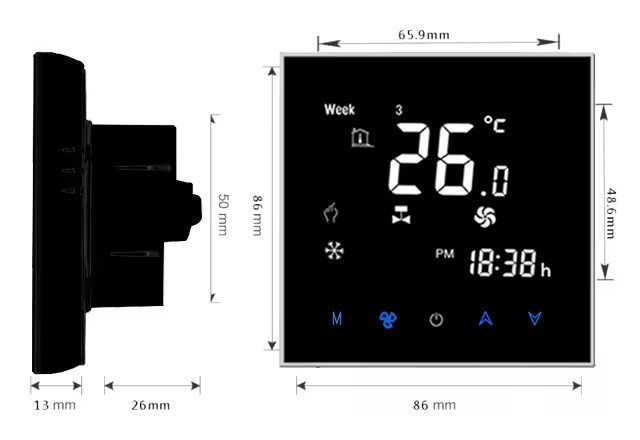

Installation Box：86 * 86mm Square or European 60mm Round Box
Application：Villa, Hotel, Apartment, Office Building, Hospital, School, Workshop, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining
Features on Appearance
1. 86mm hidden box and european 60mm round box is suitable.
2. Black shows your house clean.
3. Backlight protect your eyes.
5. Amazing Frame opens your modern life.
Features on Functionality
1. Support WIFI/RS485 communication.
2. 0.5°C Accuracy keeps temperature within the level you set.
3. Data memory when power is off.

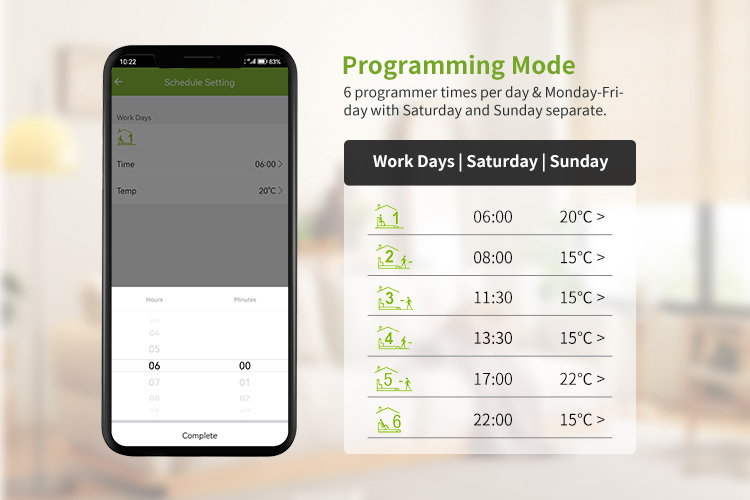

4. 5+2 six periods programmable maximize comfort and economy.
5. Create thermostat group to centrally control.
6. Support voice control, Amazon Echo, Google Home, Tmall Genie, IFTTT., etc.
CCST1002/ Fan Coil AC Digital Thermostat Smart Remote Thermostat Fan Coil Thermostat
