Fan Coil Programmable Smart Tuya WiFi Wireless Room Fcu ThermostatCCST1001

CCST1001

CCST1001 series modern touch screen room Thermostats are designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp.as reaching the aim of comfort and saving energy.

Quantity:

Contact Now

add to cart

Recommend Products

CCST7001

CCST7001 series modern round touch screen room Thermostats are designed to in/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp.as reaching the aim of comfort and saving energy.

CCST7001
AC-6001

The AC-6001 is a durable, safe and reliable smart Air Conditioning thermostat for Fan Coil Unit HVAC System. It is a Air Conditioning thermostat designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature, as reaching the aim of comfort and saving energy.

AC-6001
AC-006

The AC-006 is a durable, safe and reliable smart AC thermostat for Fan Coil Unit HVAC System. It is a smart AC thermostat designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature, as reaching the aim of comfort and saving energy.

AC-006
CCST6001

CCST6001 series modern round touch screen room Thermostats are designed to in/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp.as reaching the aim of comfort and saving energy.

CCST6001

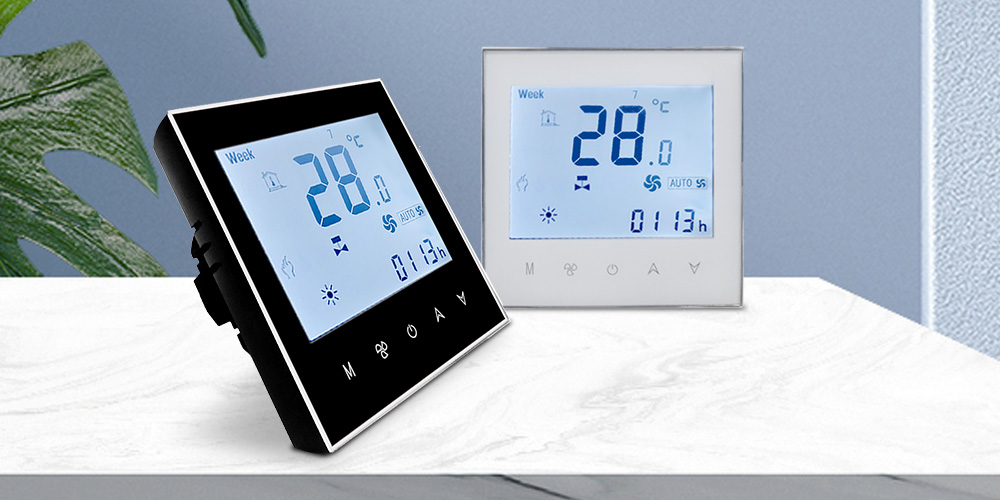

CCST1001/ Fan Coil AC Thermostat Smart WiFi Room Thermostat

Digital thermostat

The CCST1001 AC thermostat (Air Conditioning Thermostat) is mainly use in fan coil. It's a AC thermostat designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp, as reaching the aim of comfort and saving energy. As a digital thermostat, it can control the temperature exactly and react timely. As a remote thermostat, it have remote function, you can set the room temperature though you are outside. The CCST1001 is a AC thermostat have complete functionality, you can change parameters according to your needs, let you always be in the room temperature that you feel comfortable.

CCST1001/ Fan Coil AC Thermostat Smart WiFi Digital Thermostat

Technical Data

Power Supply：95~240 VAC, 50~60HZ

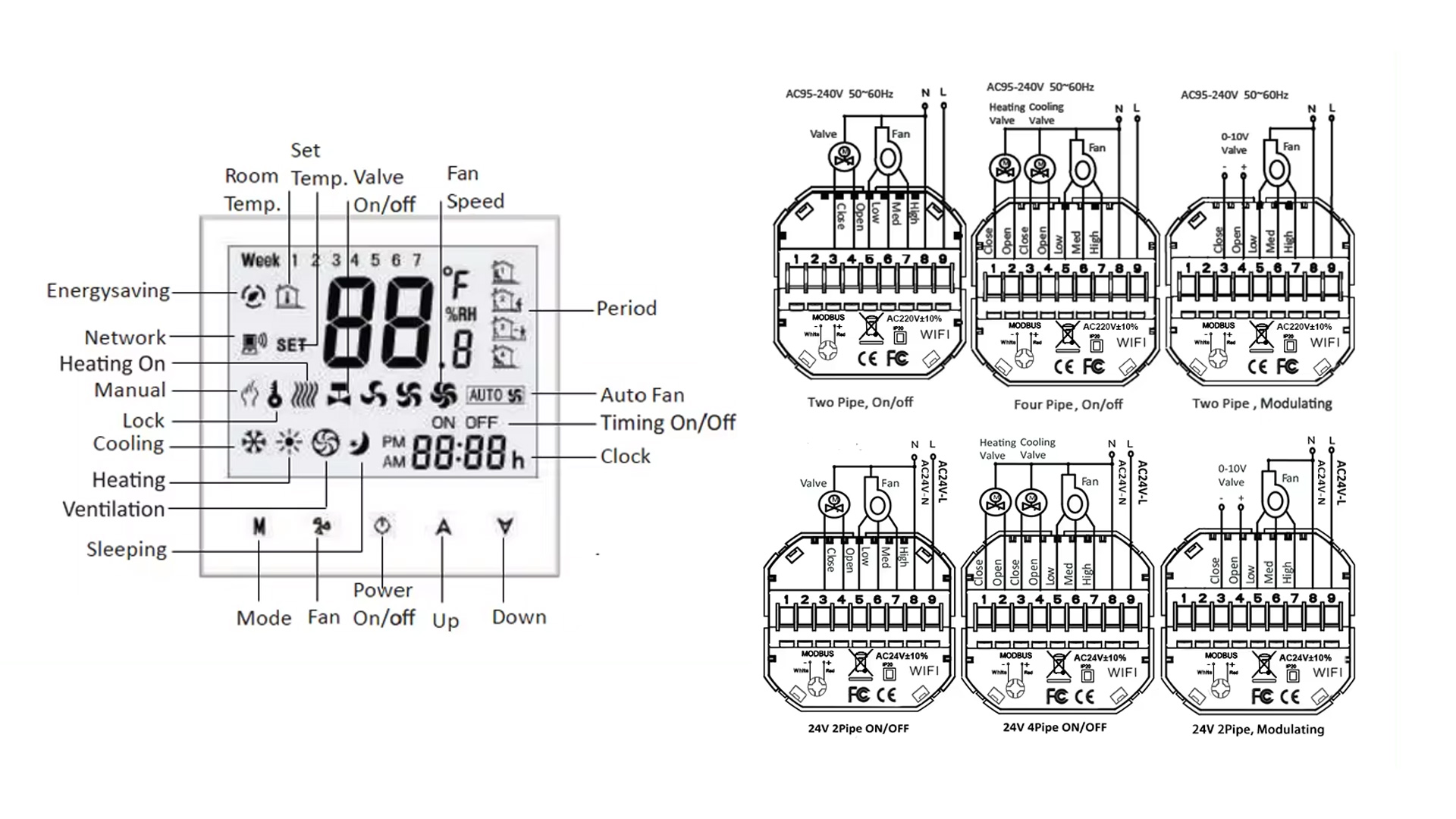

Application：Two pipe on/off, Four pipe on/off, Two pipe modulating

Sensor ：NTC3950,10K

Accuracy：±0.5ºC

Set Temp. Range：5~35ºC

Dispply Temp. Range：5~99ºC

Ambient Temp. ：0~45ºC

Ambient Humidity：5~95%RH(Non Condensing)

Storage Temp：-5~45ºC

Power Consumption：<1.5W

Timing Error：<1%

Protection Class：IP20

Buttons：Capactive Touch Buttons

Shell Material：PC + ABS ( Fireproof)

Installation Box：86 * 86mm Square or European 60mm Round Box

Application：Villa, Hotel, Apartment, Office Building, Hospital, School, Workshop, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining

CCST1001/ Fan Coil Thermostat Smart WiFi Remote Thermostat

Features on Appearance

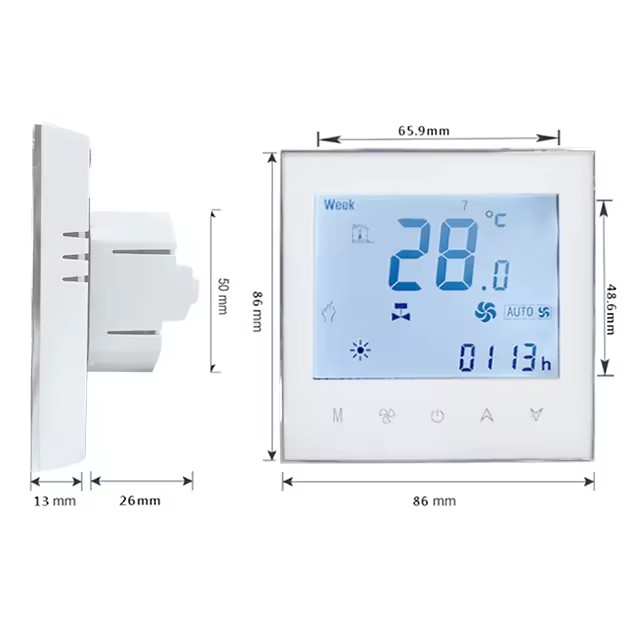

1. 86mm hidden box and european 60mm round box is suitable.

2. White, black housing creates your colorful life.

3. White backlight protect your eyes

5. Amazing Silver Frame opens your modern life.

CCST1001/ Fan Coil AC Thermostat Smart WiFi Room Thermostat

AC thermostat

Features on Functionality

1. Support WIFI/RS485 communication.

2. 0.5°C Accuracy keeps temperature within the level you set.

3. Data memory when power is oﬀ.

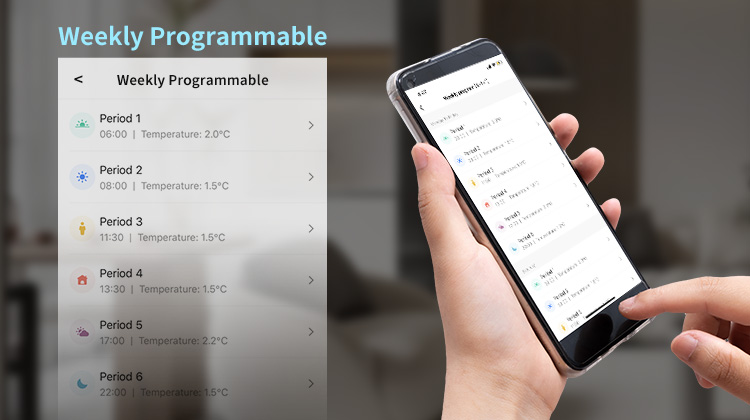

4. 5+2 six periods programmable maximize comfort and economy.

5. Create thermostat group to centrally control.

6. Support voice control, Amazon Echo, Google Home, Tmall Genie, IFTTT., etc.

CCST1001/ Fan Coil AC Thermostat Smart WiFi Room Thermostat
