TP618RF

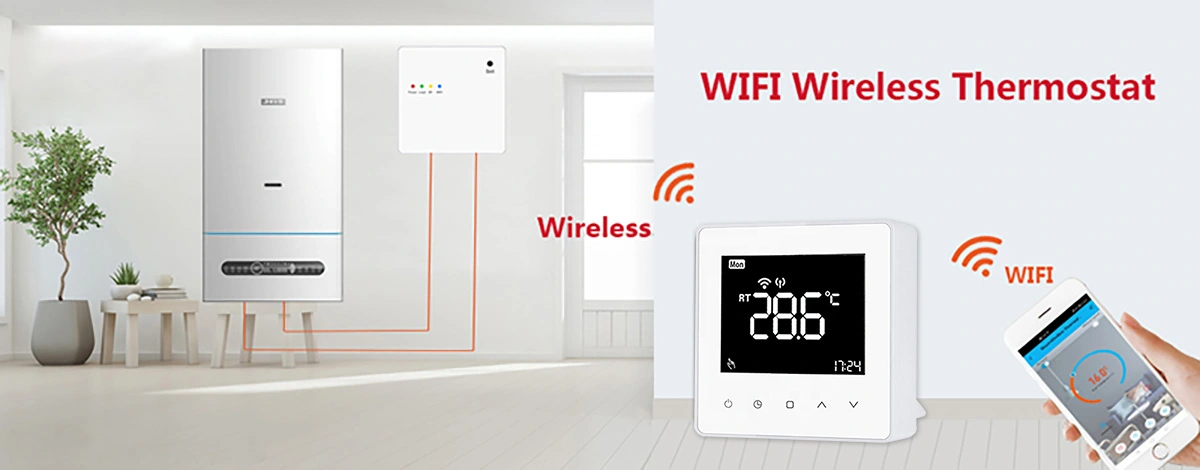

The TP618RF rf thermostat is a modern touch type wireless thermostat. You could use mobile to control the thermostat anywhere. It can replace most common residential thermostat and is designed to be used with electric heating, water heating or gas boil system.

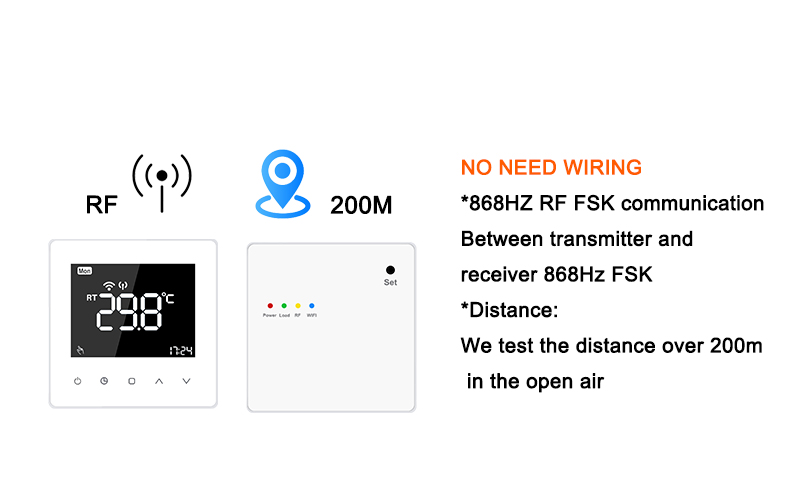

Unlike ordinary single unit design thermostat, this unit is a new type of smart thermostat separating the functions into two units, Receiver and Control Center. The distance over 150M in the open air. A heated floor thermostat can be used to control boilers, thermal actuators,motorized valves etc.

TP618RF/ Floor Heating Wireless Thermostat Smart RF Thermostat

Technical Data
Power source: Control Centre 2 AA batteries, Receiver 95-240VAC±10% 50/60HZ
Frequency band: 868MHZ

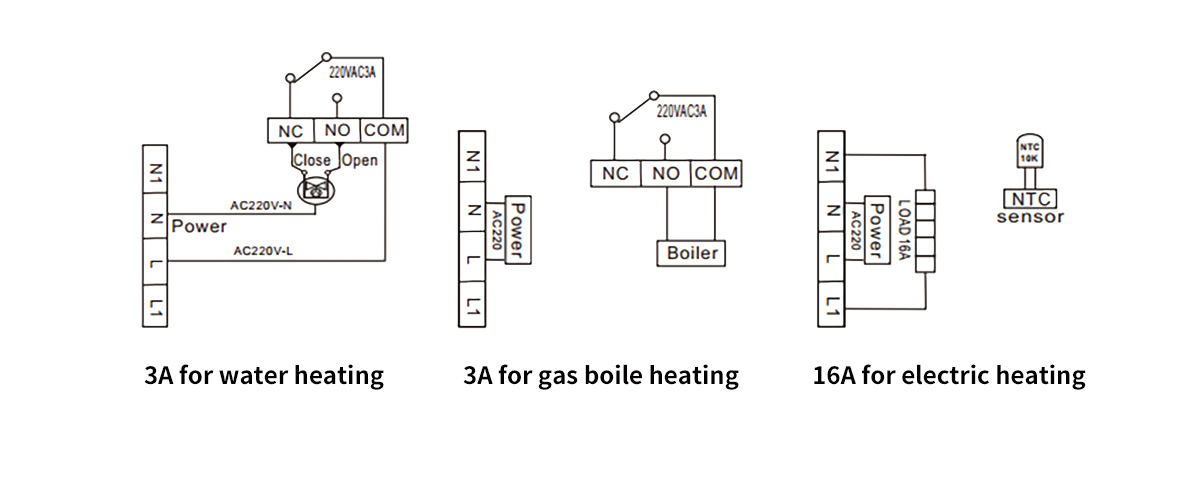

Relay contact: water heating 3A, gas boile heating 3A, electric heating 16A
Room temperature setting range: 5℃~35℃
Working environment temperature range: 0℃~50℃
Storage Temperature range: -10℃~60℃
Accuracy: 0.5℃
Control Center/Receiver Dimension：86mm*86mm*15mm
Installation:Wall mount or Desktop

TP618RF/ Floor Heating Wireless Thermostat Smart RF Thermostat

Features on Appearance

1. White/Black color option creates elegant life.

2. Acrylic lenses to avoid the finger scrathes.

3. Touch Button makes simple operation.

4. Modern desgin similar as a cell phone.

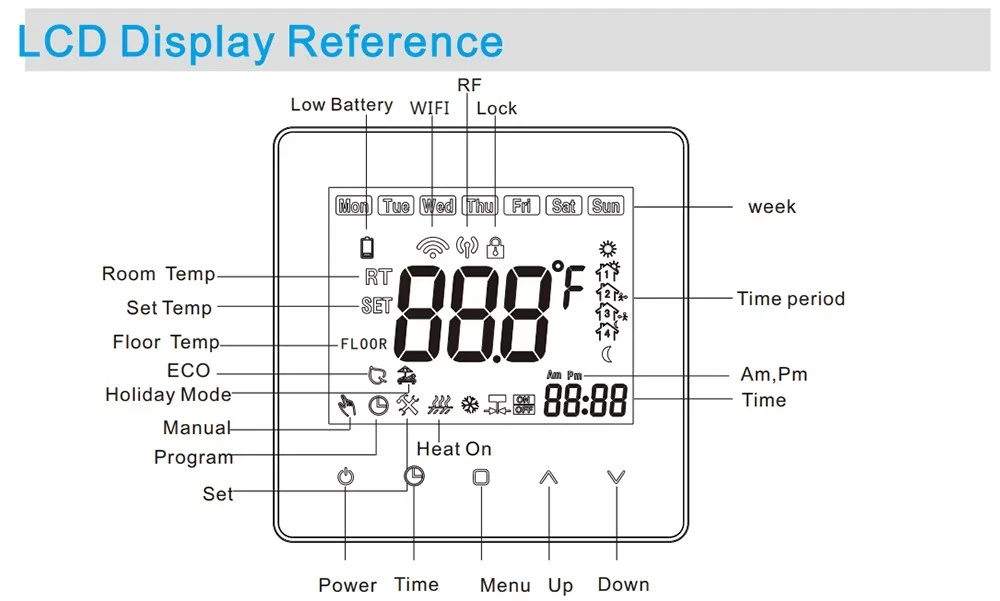

5. Large VA screen display with backlight is easy to read—even in the dark.

TP618RF/ Floor Heating Wireless Thermostat Smart RF Thermostat

Features on Functionality

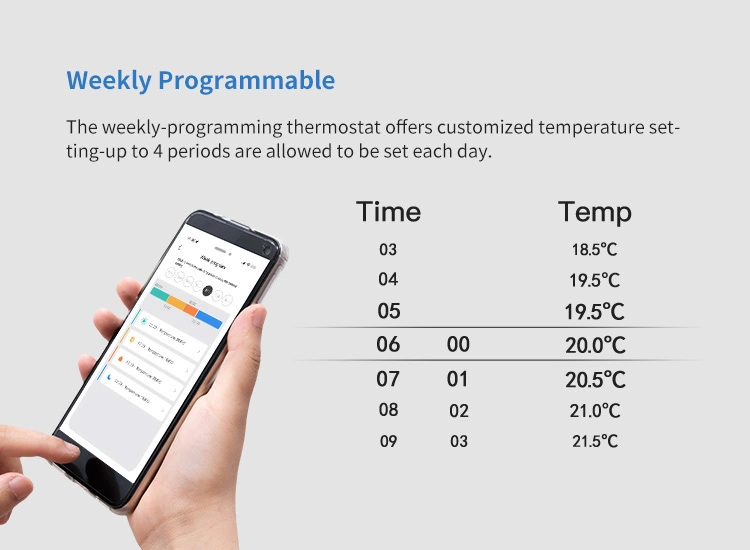

1. Programming Period: 5+1+1, 6 separate periods per day.
2. WIFI APP control with IOS & Andriod.
3. One-touch temp control overrides program schedule at any time.
4. Data memory when power is off.

5. Anti-freezing protection.

6. Precise comfort control keeps temperature within 0.5°C of the level you set.

TP618RF/ Floor Heating Wireless Thermostat Smart RF Thermostat
